Applications: Mobile altimeter/barometer systems, Weather control systems, Adventure or multi-mode watches, GPS receivers
　
　　Industries: Consumer Goods
　　　　

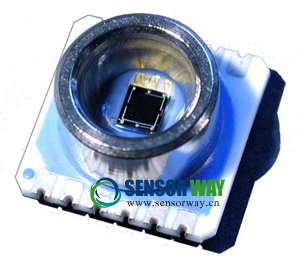

　　Description: The MS5534C is a SMD-hybrid device including a piezoresistive pressure sensor and an ADC-Interface IC. It provides a 16-bit data word from a pressure and temperature dependent voltage. Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor. MS5534C is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a microcontroller. The MS5534C is fully software compatible to the previous versions (MS5534A and MS5534B). Compared to the previous versions, the ESD sensitivity level has been improved to 4kV on all pins.

　　Features:
　　Integrated pressure sensor (9x9 mm)
　　Pressure range 10-1100 mbar
　　16 Bit ADC
　　coefficients for a software compensation stored on-chip
　　3-wire serial interface
　　1 system clock line (32.768 kHz)
　　Temperature range -40..+125°C
　　Low voltage (2.2 to 3.6V)
　　Low power (Standby current: 0.1uA)
　　Low operating current less than 5uA
　　Pb-free and RoHS-compatible
　　Soldering profile: 240-250°C

　　典型应用: 手持海拔高度/大气压力系统，天气控制系统，探险或多功能手表，GPS
　　行业: 消费电子和家用电器
　　　
　　产品描述: MS5534C硅压阻式压力传感器采用先进的ADC模数转换IC，提供16位的压力和温度数字输出。传感器还提供6个可读系数用于高精度软件校正。MS5534C的主要特点是低电压、低功耗，以及自动待机（ON/OFF）功能。MS5534C通过3线接口和外部微控器通讯，MS5534C与MS5534A和MS5534B具有软件兼容性。与更早的版本相比，MS5534C的防静电能力更强（4kV ）。

　　特点:
　　集成压力传感器（9×9mm）
　　压力量程：10-1100mbar
　　16位ADC
　　6个软件补偿系数
　　3线串口
　　1条系统时钟线
　　工作温度：-40℃~125℃
　　低电压（2.2~3.6V）
　　低功耗（待机电流：0.1uA）
　　工作电流小于5uA
　　无铅&RoHS认证
　　焊接温度：240℃~250℃

　　MS5534C气压传感器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/438.html　　
　　
　　北京赛斯维测控技术有限公司产品咨询热线：010-84775646，84775648。
