Applications: Mobile phones, GPS receivers, Altimeter applications, Personal Navigation Devices (PND), Digital cameras with altimeter function

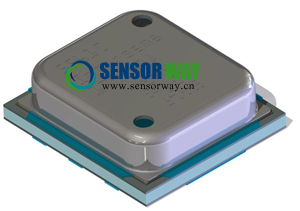

　　Description: The MS5561C is a SMD-hybrid device including a precision piezo-resistive pressure sensor and an ADC-Interface IC. It uses a three-wire serial interface for communication. The module dimensions of 4.75 mm x 4.25 mm and a height of only 1.6 mm allows for up-to-date SMD design. It provides a 16 bit data word from a pressure and temperature dependent voltage. The MS5561 is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a micro-controller.

　　Features:

　　•Pressure resolution 0.1mBar
　　•Operating temperature -40°C to +85°C
　　•Supply voltage 2.2V to 3.6V
　　•Low supply current, typ. 4µA
　　•Standby current < 0.1µA
　　•Calibrated temperature and pressure sensor for 2nd order compensation
　　•ESD protected, HBM 4kV

　　典型应用: 手机，GPS，高度计，个人导航设备（PND），带高度功能的数码相机

　　产品描述: MS5561C由高精度的硅压阻压力传感元件和模数转换IC组成，通过3线接口和外部微控器通讯。传感器的尺寸为4.75 mm x 4.25 mm ，厚度仅为1.6 mm 。MS5561C提供16位的压力和温度数字输出，主要特点为低电压，低功耗，以及自动待机（ON/OFF）功能。

　　特点:
　　•压力分辨率：0.1mBar
　　•工作温度：-40°C ~ +85°C
　　•供电电压：2.2V ~ 3.6V
　　•工作功耗：4µA
　　•待机功耗 < 0.1µA
　　•经过校正的温度和压力传感器，可供二次补偿
　　•ESD保护，HBM 4kV

　　MS5561C气压传感器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/456.html
　　
