Applications: Mobile altimeter/Barometer systems, Bike computers, Adventure or multi-mode watches, Variometers, Dataloggers

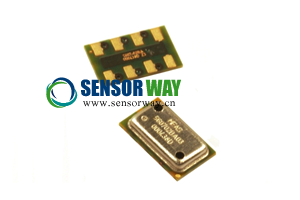

　　Description: The MS5607-02BA is a new generation of high resolution altimeter sensors from MEAS Switzerland with SPI and I2C bus interface. It is optimized for altimeters and variometers with an altitude resolution of 20 cm. This barometric pressure sensor module includes a high linearity pressure sensor and an ultra low power 24 bit ΔΣ ADC with internal factory calibrated coefficients. It provides a precise digital 24 bit pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption. A high resolution temperature output allows the implementation of an altimeter/thermometer function without any additional sensor. The MS5607-02BA can be interfaced to virtually any microcontroller. The communication protocol is simple, without the need of programming internal registers in the device. Small dimensions of only 5.0 mm x 3.0 mm and a height of only 1.0 mm allow for integration in mobile devices. This new barometric pressure sensor module generation is based on leading MEMS technology and latest benefits from MEAS Switzerland proven experience and know-how in high volume manufacturing of altimeter modules, which have been widely used for over a decade. The sensing principle employed leads to very low hysteresis and high stability of both pressure and temperature signal.

　　Features:
　　•Low power, 1 μA (standby < 0.15 μA)
　　•Integrated digital barometric pressure sensor (24 bit ΔΣ ADC)
　　•I²C and SPI interface up to 20 MHz
　　•No external components (Internal oscillator)
　　•10 to 1200mBar

　　典型应用: 手持高度计，气压计，自行车码表，运动手表，气压表，数据记录仪

　　产品描述: MS5607-02BA是MEAS瑞士分公司新一代的高分辨率（20cm）压力传感器，带有SPI和I2C两种接口，是高度计和气压表的理想选择。传感器包括高线性度的压力传感元件和超级低功耗的24位ΔΣ ADC，内置工厂校准系数。MS5607提供高精度的24位压力和温度数字输出，客户可以根据应用需要配置转换速度和功耗。高分辨率的温度输出可以同时实现温度计的功能。MS5607-02BA可以与所有形式的微控器配合，通讯协议非常简单，无需修改内部寄存器。传感器的尺寸非常小，仅为5.0 mm x 3.0 mm，厚度仅为1.0 mm，适合手机应用。这款新传感器模块基于先进的MEMS技术，并受益于MEAS过去十几年来在研发和批量生产气压/高度计方面的经验。先进的传感技术成就了低磁滞，高稳定性的压力/温度传感器。

　　特点:
　　•低功耗：1 μA（待机功耗 < 0.15 μA）
　　•集成的数字式压力传感器（24位ΔΣ ADC）
　　•20MHz的I²C和SPI接口
　　•无需外部元件（内置振荡器）
　　•10 ~ 1200mBar
　　
　　MS5607-02BA气压传感器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/593.html　　
　　

　　北京赛斯维测控技术有限公司产品咨询热线：010-84775646,84775648。
