Applications: Mobile water depth measurement systems, Diving computers and divers watches

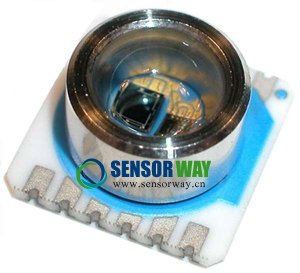

　　Description: The MS5535C is a SMD-hybrid device including a piezoresistive pressure sensor and an ADC-Interface IC. It provides a 16-bit data word from a pressure and temperature dependent voltage. Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor. MS5535C is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a microcontroller. The MS5535C is fully software compatible to the previous versions (MS5535A and MS5535B). Compared to the previous versions, the ESD sensitivity has been improved to 4kV on all pins.

　　Features:

　　Integrated pressure sensor (9x9 mm)
　　Pressure range 0-14 bar (200 PSI)
　　16 Bit ADC
　　6 coefficients for a software compensation stored on-chip
　　3-wire serial interface
　　1 system clock line (32.768 kHz)
　　Temperature range -40..+125°C
　　Low voltage (2.2 to 3.6V)
　　Low power (Standby current: 0.1uA)
　　Pb-free and RoHS-compatible
　　Soldering profile: 240-250°C
 　　Low supply current
　　No external components required　　

　　典型应用: 手持水深测量系统，潜水设备和潜水手表

　　产品描述: MS5535C硅压阻式压力传感器采用先进的ADC模数转换IC，提供16位的压力和温度数字输出。传感器还提供6位可读系数用于高精度软件校正。MS5535C的主要特点是低电压、低功耗，以及自动待机（ON/OFF）功能，通过3线接口和外部微控器通讯。MS5535C与MS5535A和MS5535B具有软件兼容性。与更早的版本相比，MS5535C的防静电能力更强（4kV ）。

　　特点:

　　集成压力传感器（9x9 mm）
　　压力量程：0-14 bar（200 PSI）
　　16位ADC
　　6个软件温度补偿系数
　　3线串口
　　1条系统时钟线（32.768 kHz）
　　工作温度：-40℃ ~ +125℃
　　低电压供电（2.2 ~ 3.6V）
　　低功耗（待机电流：0.1uA）
　　无铅，RoHS认证
　　焊接温度：240 ~ 250℃
　　低供电电流
　　无需外部元件　
