Applications: Liquid level metering, Medical application, Air flow measurement, HVAC application

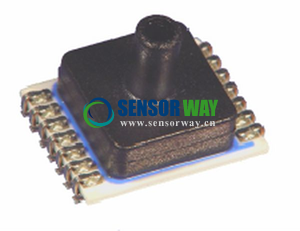

　　Description: MS5536-60C is a family of high-resolution factory calibrated pressure sensors. The devices include a piezoresistive pressure sensor and an ADC-Interface IC. The 3-wire serial interface ensures simple communication with any microcontroller. The devices provide digital pressure and temperature information as 16-Bit data word each. In addition 64-Bit of individually calibrated compensation coefficients are stored allowing for a highly accurate software compensation of process spread and temperature effects. The devices have a very low standby current and automatically enter power down mode after each conversion. The optimum compromise of refresh rate and average current consumption can be defined by the application software.

　　Features:

　　16-Bit ADC resolution
　　Supply voltage 2.2V to 3.6V
　　Low supply current
　　No external components required

　　典型应用: 液位测量，医疗，空气流量测量，HVAC

　　产品描述: MS5536-60C是一款高分辨率的压力传感器，经过工厂校正，由硅压阻压力传感元件和模数转换IC组成。传感器通过3线串口与外部微控器通讯，提供16位压力和温度数字输出，同时还提供64位经过校正的补偿系数，用于高精度的软件补偿。MS5536-60C的主要特点是低功耗以及自动待机（ON/OFF）功能，客户可以根据应用需要配置采样频率和功耗。

　　特点:

　　16位ADC分辨率
　　供电电压：2.2V ~ 3.6V
　　低功耗
　　无需外部元件
　　
　　MS5536-60C压力传感器更多技术参数及规格书下载请浏览：
http://www.sensorway.cn/sensors/455.html　　
