Applications: Tire Pressure Sensor, Consumer Appliances, Medical Instrumentation, Barometric Pressure, Altitude Measurement

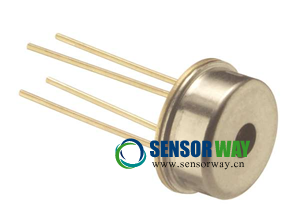

　　Description: The 50 is a piezoresistive silicon pressure sensor packaged in a TO-5 configuration. Absolute pressure ranges from 0-15 to 0-500 psi are available. It is intended for high volume applications where small size, light weight, and low cost are required. This design is intended for non-corrosive gases and is not recommended for liquids. A gel filling can be applied to provide mild protection against humidity and dust. The devices are shipped in plastic anti-static shipping tubes for use with automated production equipment. For high volume gage applications, contact the factory.

　　Features:

　　PC Board Mountable
　　 0-60 mV Output
　　Absolute Pressure
　　 Low Cost
　　T0-5 Package
　　-40ºC to +125ºC Operating range
　　±0.25% Pressure Non-linearity
　　Solid State Reliability

　　典型应用: 轮胎压力，消费品，医疗器械，气压计，高度测量

　　产品描述: 50型硅压阻式压力传感器采用TO-5封装，绝压量程从0~15到0~500psi。适合需要小型，质轻，低成本的大批量应用。测量介质为非腐蚀性气体。可以按照客户要求加胶防尘/防潮。产品采用塑料外壳包装运输。大批量表压应用请与MEAS联系。

　　特点:

　　PCB板安装
　　0~60mV输出
　　绝压
　　低成本
　　TO-5封装结构
　　-40℃~+125℃工作温度范围
　　±0.25%非线性
　　固态结构，性能可靠

　　50型压力传感器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/177.html
　　
　　北京赛斯维测控技术有限公司产品咨询热线：010-84775646，84775648。
