Applications: Altitude Measurement, Barometric Pressure, Medical Instrumentation, Consumer Appliances, Tire Pressure

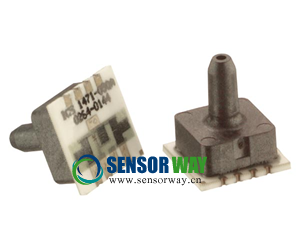

　　Description: The MS1471 is a piezoresistive silicon pressure sensor packaged in a surface mount configuration. It is intended for high volume applications where small size, light weight, low cost, and compatibility with automated assembly equipment are required. Offset and span are calibrated at room temperature for OEMs requiring higher accuracies. The pressure sensor is available with a gage or absolute pressure sensing chip that is attached to a surface mountable ceramic substrate. A plastic cap is attached to the ceramic substrate, protecting the chip and providing the pressure port. The devices are shipped in plastic anti-static shipping tubes for use with automated production equipment. The drawing shows a standard tube version. Ports are also available with a narrow hole or a large hole to interface with the pressure media.

　　Features:
　　 PC Board Mountable
　　 0-60 mV Output
　　Gage and Absolute Pressure
　　Low Cost
　　 Surface Mount Package
　　±0.25% Pressure Non-linearity
　　 3 Pressure Port Options
　　 Solid State Reliability
　　 Low Power

　　典型应用: 海拔高度测量，大气压力测量，仪器仪器，消费电子，轮胎压力

　　产品描述: MS1471表面贴装式硅压阻压力传感器适用于大批量，体积小，重量轻，自动装配的应用领域。传感器有表压和绝压两种类型，零点和满量程室温范围校正。压力芯片被压焊到可表面贴装的陶瓷基板上，保护罩一方面保护芯片，另一方面提供引压接口。MS1451采用防静电塑封管包装，适用于自动化生产设备。另外，除了引压管型，客户还可根据应用需要选择大、小引压孔型。

　　特点:
　　板载式压力传感器
　　表压和绝压
　　低成本
　　0~60mV输出
　　适合表面贴装
　　±0.25%非线性
　　3种压力接口选择
　　固态结构，性能可靠
　　低功耗

　　MS1471压力传感器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/1.html
　　
