Applications: Disposable Blood Pressure, Kidney Dialysis Machines, Medical Instrumentation, Infusion Pumps

　　Industries: Medical

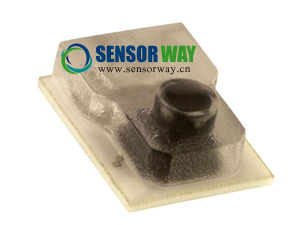

　　Description: The 1620 is a fully piezoresistive silicon pressure sensor for use in invasive blood pressure monitoring. The sensor is designed to be used with automated assembly equipment and can be dropped directly into a customer's disposable blood pressure housing. The sensor is designed to meet the requirements as described in the Association for the Advancement of Medical Instrumentation (AAMI) specification for Blood Pressure Transducers. The pressure sensor consists of a pressure sensing element mounted on a ceramic substrate. Thick-film resistors on the ceramic substrate are laser-trimmed for compensation and calibration. A plastic cap is attached to the ceramic substrate to provide an easy method of attachment to the customer’s assembly and protection for the sensing element. A dielectric gel is placed over the sensor to provide electrical and fluid isolation. The 1620 pressure sensors are batch manufactured in a 10x12 element array on a ceramic substrate (120 units per substrate). The products are shipped in anti-static shipping containers. They can also be shipped on a tape and reel. Performance characteristics and packaging can be easily tailored on a special order basis to meet the requirements of specific customers.

　　Features:
　　 Disposable Blood Pressure Sensor
　　 AAMI Specification
　　 Low Cost
　　 Multiple Configurations
　　 Calibrated per AAMI Specifications
　　Low Cost Disposable Design
　　 Solid State Piezoresistive Sensor
　　Top Side Pressure Entry
　　 Compatible with Automated Assembly Equipment
　　 Integral Dielectric Gel Barrier
　　Fully Tested and Temperature Compensated

　　典型应用: 有创血压，肾透析，医疗设备，输液泵

　　行业: 医疗

　　产品描述: 1620硅压阻式压力传感器用于有创血压监测。传感器适合自动化装配，并可直接装入客户的一次性血压计外壳内，符合AAMI规范。压力传感器由一个封装在陶瓷基板上的传感元件构成。陶瓷基板上的厚膜电阻经过激光修正，用于温度补偿和校正。陶瓷基板上的塑料盖方便传感器与客户组件的连接，并可保护传感元件。传感器上的绝缘胶用于绝缘和隔离液体。1620压力传感器在陶瓷基板上排成10×12个（120个/板），采用防静电包装，也可按卷带式包装。为了满足特殊用户的需求，产品性能和包装方式可以定制。

　　特点:
　　
　　一次性血压传感器
　　符合AAMI规范
　　低成本一次性设计
　　多种结构
　　固态压阻式传感器
　　正面受压
　　适合自动化装配
　　绝缘胶隔离
　　温度补偿

　　1620压力传感器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/66.html
　　
