Applications: Pumps and Compressors, Hydraulic/Pneumatic Systems,Automotive Test Systems, Energy and Water Management, PressureInstrumentation, Refrigeration - Freon and Ammonia Based, Agriculture- Sprayers and Dusters

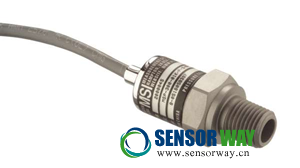

　　Description: The MSP 300 series pressure transducers from theMicrofused™ line of Measurement Specialties set a new price performance standard for low cost, high volume, commercial and industrial applications. This series is suitable for measurement of

liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids. The transducer pressure cavity is machined from a solid piece of 17-4 PH stainless steel. The standard version includes a 1/4 NPT pipe thread allowing a leak-

proof, all metal sealed system. There are no o-rings, welds or organics exposed to the pressure media. The durability is excellent. Measurement Specialties proprietary Microfused™ technology, derived from demanding aerospace applications, employs micromachined silicon piezoresistive strain gages fused with high temperature glass to a

stainless steel diaphragm. This approach achieves media compatibility simply and while elegantly providing an exceptionally stable sensor without the pn junctions of conventional micromachined sensors. This product is geared to the OEM customer using medium to high volumes. The standard version is suitable for many applications, but the dedicated design team at our Transducer Engineering Center stands ready to provide a semi-custom design where the volume and application warrants.
　　
　　Features:
　　Low Cost OEM
　　100% Leak Proof
　　No O-Rings
　　No Silicon Oil
　　No Welds
　　One-Piece Stainless Steel Construction
　　Ranges up to 10,000 PSI or 700 BAR
　　Millivolt or Amplified Outputs
　　Excellent Accuracy
　　Wide Operating Temperature Range

　　典型应用: 泵和压缩机，液压/气动系统，汽车测试系统，能源和水处理系统，

　　压力仪表，制冷系统，农机，喷涂机

　　产品描述: MSP300系列压力传感器为低成本，大批量的商业和工业应用树立了新的性能价格比典范。传感器适合气体和液体压力测量，甚至包括污水、蒸汽、轻度腐蚀性液体和气体等。MSP300的压力腔由17-4PH不锈钢单件一体式结构加工而成，标准产品带有1/4 NPT压力接口，全金属密封，无泄漏。由于无O型圈、无焊缝、并且不直接接触测量介质，传感器的稳定性和耐用性非常好。

　　MEAS独有的微熔技术源自航空应用，利用高温玻璃将微加工硅压敏电阻应变片熔化在不锈钢隔离膜片上。玻璃粘接工艺避免了温度、湿度、机械疲劳和介质对胶水和材料的影响，从而提高了传感器在工业环境中的长期稳定性，同时也避免了传感器在传统微机械加工制造工艺过程中出现的P-N结效应现象。产品特别适用于OEM客户中等及大批量应用，标准产品可广泛应用于各种用途。同时，为了保证批量应用的要求，我们的工程设计队伍还随时准备为客户量身定制特殊需求的产品。

　　特点:
　　低成本OEM应用
　　100%无泄漏
　　不锈钢单件一体化结构
　　无O形圈
　　无硅油
　　无焊缝
　　压力范围高达10K Psi或700Bar
　　毫伏或放大输出
　　高精度
　　工作温度范围宽

　　MSP300系列压力传感器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/73.html
　　
