Applications: Industrial, Process control

　　Industries: Engine and Vehicle

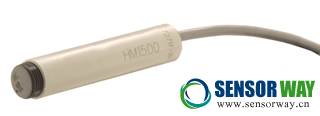

　　Description: Based on the rugged HS1101LF capacitive humidity sensor, HM1500LF is a dedicated humidity transducer designed for OEM applications where a reliable and accurate measurement is needed. Direct interface with a micro-controller is made possible with the module’s linear voltage output.

　　Features:
　　Small size product
　　Product free from Lead, Cr(6+), Cd and Hg
　　Humidity calibrated within ±2% @55%RH
　　Typical 1 to 3.6 Volt DC output for 0 to 100% RH at 5Vdc supply
　　Ratiometric to voltage supply from 4.75Vdc to 5Vdc
　　Patented solid polymer structure
　　Full interchangeability
　　High reliability and long term stability
　　Not affected by water immersion
　　Very low temperature dependence
　　Suitable for 3 to 10 Vdc supply voltage

　　Humidity Sensor Specific Features:
　　Instantaneous de-saturation after long periods in saturation phase
　　Fast response time
　　Part could be washed with distilled water


　　典型应用: 工业，过程控制

　　行业: 发动机和机动车辆

　　产品描述: HM1500LF是一款基于耐用的HS1101LF传感元件的湿度探头，专为需要可靠精确测量的OEM应用而设计。产品尺寸小，安装简单。线性电压输出，可直接与微控器连接。

　　特点:
　　 尺寸小
　　无铅，铬和汞
　　湿度精度：±2% @55%RH
　　1V ~ 3.6V直流输出（0% ~ 100% RH @ 5Vdc 供电）
　　供电电压：4.75Vdc ~ 5Vdc
　　专利的固态聚合体结构
　　互换性好
　　可靠性高，长期稳定性好
　　不受浸水影响
　　温度依赖性低

　　湿度传感器特点：
　　长期饱和状态后迅速恢复
　　快速响应
　　可蒸馏水清洗

　　HM1500LF温湿度传感器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/79.html
　　
