Applications: Low Humidity, Meteorolog

　　Industries: Engine and Vehicle

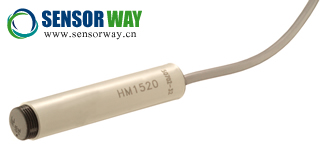

　　Description: Based on the rugged HS1101LF capacitive humidity sensor, HM1520LF is a dedicated humidity transducer designed for measurements at low humidity. Direct measurement of dew point or water concentration can be easily obtained in really cost effective conditions. Direct interface with a micro-controller is made possible with the module’s linear voltage output.

　　Features:

　　Tubular form for through wall mounting
　　Product free from Lead, Cr(6+), Cd and Hg
　　Calibrated, linear voltage for easy electronic interface
　　Typical 1 to 1.6 Volt DC output for 0 to 20% RH at 5Vdc supply
　　Ratiometric to voltage supply
　　Patented solid polymer structure
　　Full interchangeability
　　Not affected by water immersion
　　Controlled temperature dependency

　　Humidity Sensor Specific Features:
　　Not affected by long period at low humidity values
　　High resistance to chemical
　　Fast response time

　　典型应用: 低湿度测量，气象站

　　行业: 发动机和机动车辆

　　产品描述: HM1520LF是一款基于耐用的HS1101LF传感元件的湿度探头，专为低湿度的精确测量而设计。 高性价比的露点和含水量直接测量。线性电压输出，可直接与微控器连接。

　　特点:
　　管状封装，方便安装
　　无铅，铬和汞
　　工厂校正，线性电压输出，方便电气连接
　　1V ~ 1.6V直流输出（0% ~ 20% RH @ 5Vdc 供电）
　　与供电电压成比率
　　专利的固态聚合体结构
　　互换性好
　　不受浸水影响
　　温度依赖性小

　　湿度传感器特点：
　　不受长期低湿的影响
　　抗化学腐蚀
　　快速响应
