Applications: Assembly forces, Physical therapy devices, Patient weight, Hand tool forces, Chiropractic and exercise equipment, Consumables monitoring: Copy equipment and vending systems, Appliance payload monitoring: Washers, Dryers, Water weight, Extraction efficiency, Appliance unbalance monitoring

　　Industries: Medical, Consumer Goods

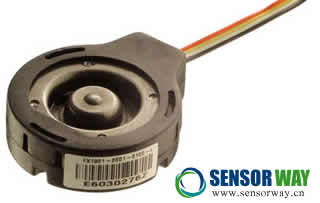

　　Description: The FX1901 units are intended for OEM use in laboratory, hospital or consumer product applications, establishing a breakthrough price/performance value for compression load cells. The FX1901 is a 1% load cell device with full scale ranges of 10, 25, 50 or 100 and 200lbf compression. This new, low-cost technology enables force sensing in a whole new class of "smart" consumer and medical products. MEAS’ proprietary Microfused™ technology, derived from demanding aerospace applications, employs micro-machined piezoresistive strain gages fused with high temperature glass to a high performance stainless steel force measuring flexure. Microfused™ technology eliminates age-sensitive organic epoxies used in traditional load cell designs, providing excellent long term span and zero stability. Operating at very low strains, Microfused™ technology provides an essentially unlimited cycle life expectancy, superior resolution, high over-range capabilities and a ratiometric span of 20mV/V. The combination of stamped flexures and micro miniaturized MEMs strain gages permits low costs to be achieved in high volume OEM applications ranging from disposable medical devices to durable appliances and exercise equipment.

　　Features:
　　Ultra low cost High Reliability Design for OEM, Appliance and Medical Applications
　　Compression Ranges: 10, 25, 50, 100, 200 lbf
　　Compact coin cell package
　　Anti-rotation mounting features
　　Low cost connectors available
　　Small size
　　Low noise
　　Robust: High overrange
　　High reliability
　　Millivolt output: 20 mV/V nominal
　　Low deflection
　　Fast
　　Essentially unlimited cycle life expectancy

　　典型应用: 装配力，物理治疗仪，病人体重，手动工具力测量，运动器材，自动售货机，家用电器负载监控：洗衣机，干衣机，提取率，失衡监控

　　行业: 医疗, 消费电子和家用电器

　　产品描述: FX1901力传感器具有高性能，低成本的特点，量程为10，25，50，100和200 lbf，精度为1%。源于航天航空业的特殊要求，MEAS利用独有的微熔技术通过高温熔解玻璃将微机械压阻应变片与高性能不锈钢基板粘合。微熔技术彻底摆脱了传统称重传感器所使用的限制产品寿命的有机环氧树脂，从而具有极好的零点和长期稳定性。在形变非常小的情况下，微熔技术利用应变因子大于100的应变片，产品不存在寿命限制，分辨率高，抗过载能力强，输出为20 mV/V。从一次性医疗器械，耐用的家用电器，到运动器材，FX1901都是OEM客户的理想选择。

　　特点:
　　
　　超低成本，高稳定性的力传感器专为家电，医疗等应用设计
　　量程：10，25，50，100，200 lbf
　　“硬币”设计
　　防旋转安装
　　可选低成本接头
　　小型封装
　　低噪声
　　耐用：高过载能力
　　高可靠性
　　毫伏输出：20 mV/V
　　偏移小
　　响应迅速
　　无寿命限制

　　FX1901力传感器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/228.html
　　
