Applications: Process Control Equipment, Weighing Calibration Tool, Robotics and Effectors, Laboratory and Research, Calibration Presses

　　Industries: General Industry

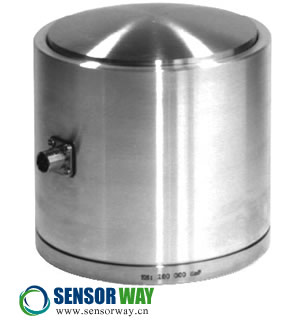

　　Description: The FN2420 is a high accuracy compression load cell often used in applications involving calibration presses. It is available in standard ranges from 0-4000 to 0-1000000 lbf and comes with many options, including a concave loading fixture and an integrated amplifier for high-level output. The FN2420's design and optional concave loading fixture minimize transverse effects. Constructed in stainless steel, the sensor is suitable for use in many hostile environments and can be customized for increased protection. With many years of experience as a designer and manufacturer of sensors, Measurement-Specialties often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

　　Features:

　　Full Scale Range from 0-20 kN to 0-5000 kN [4 klbf to 1000 klbf]
　　Linearity <0.1% F.S.
　　For Compression Use (e.g. calibration presses)
　　High Level Output Model with Integrated Amplifier
　　Optional Load Button

　　典型应用: 过程控制设备，校验仪，机器人末梢执行器，实验室和研究机构
行业: 工业控制

　　产品描述:

　　FN2420是一款高精度的压力传感器，主要适合校验方面的应用。标准量程从0-4000到0-1000000 lbf，可选凹面安装夹具和内置放大器。FN2420的特殊设计和可选的凹面夹具将横向效应最小化。传感器的不锈钢结构适用于多种恶劣的环境，并可根据客户要求定制。 作为拥有多年经验的传感器设计和制造商，MEAS常常与客户合作，按要求定制适合特殊用途和测试环境的传感器。同时，我们也根据客户需要提供成套系统。配套元件（传感器，电源，放大器和数显系统）配置统一，经过校正，可供客户立即使用。

　　特点:

　　量程从0-20 kN到0-5000 kN（4 klbf 到 1000 klbf）
　　线性 <0.1% F.S.
　　压力模式
　　可选放大输出
　　可选纽扣式封装

　　FN2420力传感器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/564.html
　　
　　北京赛斯维测控技术有限公司产品咨询热线：010-84775646，84775648。
