Applications: Assembly Forces, Weighing, Tool Force, Offshore, Civic Works

　　Industries: General Industry

　　

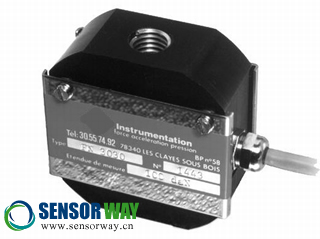

　　Description: The FN3002 is suitable for measuring cable tension and for use in test benches and in many industrial applications. The FN3002 has compact dimensions and measures tension and compression in standard ranges from 2000 to 400000 lb. Numerous options are available for adaptation to severe environments, for example, IP67 or IP68 protection. A model with integrated amplifier for high-level output is also available. With many years of experience as a designer and manufacturer of sensors, Measurement-Specialties often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

　　Features:

　　Full Scale Range: 0 - 10kN to 0 - 2000kN [2klbf to 400klbf]
　　Tension and Compression
　　Threaded Male Mechanical Fitting
　　Accuracy: 0.25% F.S.
　　Optional Rod End or Female Adapter
　　High Level Output Model with Integrated Amplifier

　　典型应用: 装配力，称重，工具受力，石油开采

　　行业: 工业控制

　　产品描述:
　　
　　FN3002用于测试台和许多工业应用中的缆索拉力测量。FN3002尺寸小，用于测量拉力和压力，量程从2000到400000 lb。多种配置可选，以适应恶劣环境的需要，例如，IP67或IP68，同时可选放大输出。作为拥有多年经验的传感器设计和制造商，MEAS常常与客户合作，按要求定制适合特殊用途和测试环境的传感器。同时，我们也根据客户需要提供成套系统。配套元件（传感器，电源，放大器和数显系统）配置统一，经过校正，可供客户立即使用。

　　特点:

　　量程从0 - 10kN 到 0 - 2000kN [2klbf 到 400klbf]
　　拉压力测量
　　外螺纹
　　精度：0.25% F.S.
　　末端连杆可选
　　可选放大输出

　　FN3002力传感器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/566.html

　　北京赛斯维测控技术有限公司产品咨询热线：010-84775646，84775648。
