Applications: Process Control Equipment, Weighing Calibration Tool, Dynamic Fatigue Tests, Aerospace Test Bed, Robotics and Effectors, Laboratory and Research

　　Industries: General Industry

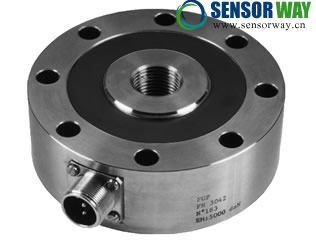

　　Description: The FN3042 is highly suited for use in test benches and fatigue tests. Due to the mechanical design, the FN3042 is especially durable. It measures tension and compression in standard ranges from 0-1 klbf to 0-100 klbf and is able to undergo more than 1000000 cycles of full scale with very little change in zero offset stability. With many years of experience as a designer and manufacturer of sensors, Measurement-Specialties often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

　　Features:

　　Full Scale Range : from 0-5 kN to 0-500 kN [0-1 klbf to 0-100 klbf]
　　Tension and Compression
　　Accuracy: 0.25% F.S.
　　Skydrol Compatible on Request
　　High Level Output Model with Integrated Amplifier

　　典型应用: 过程控制设备，校验仪，动态疲劳测试，航空航天测试台，机器人末梢执行器，实验室

　　行业: 工业控制

　　产品描述:

　　FN3042非常适合测试台和疲劳测试。由于其特殊的机械结构，FN3042特别耐用，用于拉力和压力测量，标准量程从0-1 klbf 到 0-100 klbf，寿命达到一百万次，并且零点漂移非常小。作为拥有多年经验的传感器设计和制造商，MEAS常常与客户合作，按要求定制适合特殊用途和测试环境的传感器。同时，我们也根据客户需要提供成套系统。配套元件（传感器，电源，放大器和数显系统）配置统一，经过校正，可供客户立即使用。

　　特点:

　　量程：从0-5 kN 到 0-500 kN [0-1 klbf 到 0-100 klbf]
　　拉力和压力测量
　　精度：0.25% F.S.
　　兼容特种液压工作油
　　可选放大输出

　　FN3042疲劳测试力传感器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/575.html
　　
　　北京赛斯维测控技术有限公司产品咨询热线：010-84775646，84775648。
