- FN7325多轴向力和扭矩传感器中英文产品介绍
- 来源:赛斯维传感器网 发表于 2014/6/18
Applications: Mechanical Linkage, Structure Testing, Crash Testing, Automotive Testing, Industrial Test Benches
Industries: General Industry

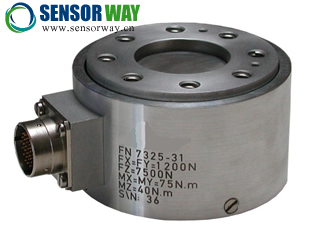

Description: The multiaxial FN7325 measures force from 0-5 kN to 0-250 kN along three axes as well as the corresponding torque from 0-200 N.m to 0-7000 N.m. The FN7325 is simple to use and install and in many diverse applications circumvents the necessity of employing multiple single-axes units. For high-level output a model with integrated amplifier is available. With many years of experience as a designer and manufacturer of sensors, Measurement-Specialties often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.
Features:
Full Scale Range from 0-5 kN to 0-250 kN
Measures force in three directions X, Y, Z
Measures torque in three directions Mx, My, Mz
High Level Output Model with Integrated Amplifier
Minimal Cross Effects
典型应用: 机械联动装置,结构测试,碰撞测试,汽车测试,工业测试台
行业: 工业控制
产品描述:
FN7325测量从0-5 kN 到0-250 kN的三个方向的力,同时测量从0-200 N.m 到 0-7000 N.m的三个方向的扭矩。FN7325安装和操作简便,适合许多需要多轴测量的应用。可选放大输出。作为拥有多年经验的传感器设计和制造商,MEAS常常与客户合作,按要求定制适合特殊用途和测试环境的传感器。同时,我们也根据客户需要提供成套系统。配套元件(传感器,电源,放大器和数显系统)配置统一,经过校正,可供客户立即使用。
特点:
量程:0-5 kN 到 0-250 kN
三个方向的力测量
三个方向的扭矩测量
可选放大输出
最小的侧向影响
FN7325力传感器更多技术参数及规格书下载请浏览:http://www.sensorway.cn/sensors/596.html
北京赛斯维测控技术有限公司产品咨询热线:010-84775646,84775648。
