XFL212R微型力传感器中英文产品介绍
来源:赛斯维传感器网 发表于 2014/6/18



  Applications: Strain table measurement, Micro component assembly tools, Mechanical switches control, Laboratory

  Industries: General Industry

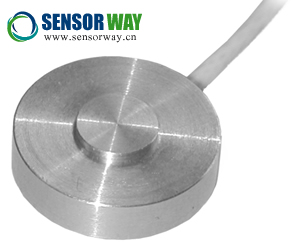

  Description: The XFL212R series is an extraordinarily thin miniature load cell with a temperature compensation module integrated into the output cable. This design allows Measurement-Specialties to manufacture extremely small sensors without sacrificing thermal zero and sensitivity performance. The XFL212R measures strain during compression in static and dynamic applications. Unlike sensors with flat force application surfaces, the XFL212R incorporates a spherical load button, which assures more precise loading and in return more accurate measurements. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The use of silicon strain gages optimizes its performance at low ranges and frequencies. The sensor is available in aluminum alloy or stainless steel, depending on the full scale range and can withstand considerable overloads. With many years of experience as a designer and manufacturer of sensors, Measurement Specialties, Inc. often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

  Features:

  Small size
  Flat sensor
  High stiffness
  Integrated spherical load button
  Other designs avilable on request

  典型应用: 张力测量,小型元件组装工具,机械开关控制,实验室

  行业: 工业控制

  产品描述:

  XFL212R是一款超薄,超小型的力传感器,经过温度补偿,同时保证产品的零点和灵敏度。 XFL212R用来测量动态和静态应用中的张力。XFL212R的球形纽扣设计使得测量精度更高。产品的传感原理为高稳定性的微机械硅应变片组成的惠斯通电桥。硅应变片的优点在小量程和低频率时尤为明显。根据量程和过载不同,可选铝合金或不锈钢封装。作为拥有多年经验的传感器设计和制造商,MEAS常常与客户合作,按要求定制适合特殊用途和测试环境的传感器。同时,我们也根据客户需要提供成套系统。配套元件(传感器,电源,放大器和数显系统)配置统一,经过校正,可供客户立即使用。

  特点:

  尺寸小
  超薄
  强度高
  球形纽扣设计
  可为客户定制

  XFL212R力传感器更多技术参数及规格书下载请浏览:
http://www.sensorway.cn/sensors/612.html
