Applications: Strain table measurement, Micro component assembly tools, Screw and insert test benches, Press fit monitoring, Laboratory

　　Industries: General Industry

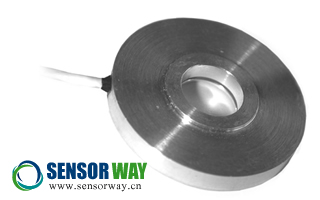

　　Description: The XFL225D series is a very flat miniature load cell with a temperature compensation module integrated into the output cable. This design allows Measurement-Specialties to manufacture extremely small sensors without sacrificing thermal zero and sensitivity performance. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The XFL225D is developed for measuring large full scale ranges up to 1000 lb and can withstand considerable overloads. It can measure strain during compression in static and dynamic applications. A strain relief spring strengthens the cable output. This sensor is available in a load washer model (the diameter of the hole is 8.2 mm) to measure bolt tightening forces. With many years of experience as a designer and manufacturer of sensors, Measurement Specialties, Inc. often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

　　Features:

　　Small size
　　Flat sensor
　　Inside hall 8mm
　　Other designs as special on request
　　Temperature compensated

　　典型应用: 张力测量，小型元件组装工具，螺丝旋紧测试台，压配合监控，实验室

　　行业: 工业控制

　　产品描述:

　　XFL225D是一款超薄，超小型的力传感器，经过温度补偿，同时保证产品的零点和灵敏度。产品的传感原理为高稳定性的微机械硅应变片组成的惠斯通电桥。XFL225D专门用来测量高达1000lb的力，而且过载能力强，可以测量动态和静态应用中的张力。保护弹簧增加了输出电缆的强度。传感器采用垫圈式封装（通孔的直径为8.2mm），用于测量螺栓旋紧力。作为拥有多年经验的传感器设计和制造商，MEAS常常与客户合作，按要求定制适合特殊用途和测试环境的传感器。同时，我们也根据客户需要提供成套系统。配套元件（传感器，电源，放大器和数显系统）配置统一，经过校正，可供客户立即使用。

　　特点:

　　尺寸小
　　扁平设计
　　内径 8mm
　　可根据客户要求定制
　　带温度补偿
