- CD1095扭矩传感器中英文产品介绍
- 来源:赛斯维传感器网 发表于 2014/6/19
Applications: Dynamic applications, Process control equipment, Test and Measurement, Robitics and effectors, Laboratory and Research
Industries: General Industry

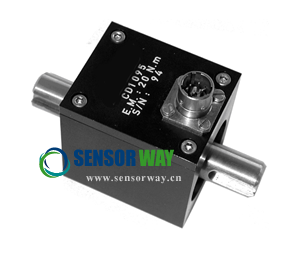

Description: The CD1095 has been designed to measure in-line torque on rotating shafts. Its sensing element is based on thin layer strain gauges in a Wheatstone bridge configuration providing excellent temperature stability. Optionally the torque sensor can receive an on-board amplifier for high level output. Intermediate ranges are available at no extra cost. Consult Measurement-Specialties’ Engineering Department if the standard options do not meet your needs or should your application require a more comprehensive measurement system. With many years of experience as a designer and manufacturer of sensors, Measurement Specialties often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.
Features:
Ranges from ±5 to ±2,500 Nm (±4 to 2,000 Lbf-ft)
For Dynamic Applications
Keyed Shaft Mechanical Connection
High Level Output Model with Integrated Amplifier
典型应用: 动态应用,过程控制设备,测试测量,机器人和终端设备,实验室和研究
行业: 工业控制
产品描述:
CD1095系列扭矩传感器主要用于转轴扭矩的实时测量。金属应变片组成的惠斯通电桥提供优异的温度稳定性。另外有内置放大器的放大输出型号可选。作为拥有多年经验的传感器设计和制造商,MEAS可以按要求定制适合特殊用途和测试环境的传感器。同时,我们也根据客户需要提供成套系统。配套元件(传感器,电源,放大器和数显系统)配置统一,经过校正,可供客户立即使用。
特点:
量程:±5Nm ~ ±2500Nm(±4Lbf-ft ~ ±2000Lbf-ft)
动态应用
插销式机械连接
放大输出型可选
CD1095系列扭矩传感器更多技术参数及规格书下载请浏览:
http://www.sensorway.cn/sensors/553.html
北京赛斯维测控技术有限公司产品咨询热线:010-84775646,84775648。
