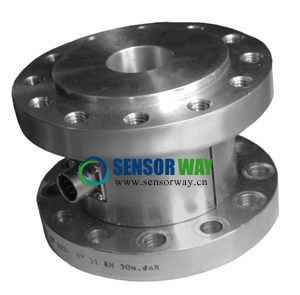

CS1210反作用扭矩传感器中英文产品介绍
来源:赛斯维传感器网 发表于 2014/6/19



  Applications: Process control equipment, Weighing calibration tool, Robotics and effectors, Ball bearing torque measurement, Laboratory and Research

  Industries: General Industry

  Description: The CS1210 Series has been developed to measure torque in static applications. It offers high operating ranges up to 8,000 lbf-ft. The mechanical design and gauge placement minimizes transverse effects. Fitted with metallic strain gauges in a Wheatstone bridge circuit, the CS1210 is providing excellent temperature stability. For high-level output a model with integrated amplifier is available. With many years of experience as a designer and manufacturer of sensors, Measurement Specialties often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

  Features:

  Ranges from ±160 to ±10,000 Nm (±128 to ±8,000 Lbf-ft)
  For Static Applications
  High Stiffness
  Collar Mechanical Fittings
  High Level Output Model with Integrated Amplifier

  典型应用: 过程控制设备,称重校准工具,机器人和执行器,滚珠轴承扭矩测量,实验室和研究

  行业: 工业控制

  产品描述:

  CS1210系列扭矩传感器主要用来测量静态扭矩,最大量程为8000lbf-ft。特殊的机械设计和应变片位置有效的降低了横向效应。金属应变片组成的惠斯通电桥提供优异的温度稳定性,可选放大输出。作为拥有多年经验的传感器设计和制造商,MEAS常常与客户合作,按要求定制适合特殊用途和测试环境的传感器。同时,我们也根据客户需要提供成套系统。配套元件(传感器,电源,放大器和数显系统)配置统一,经过校正,可供客户立即使用。

  特点:

  量程:±160Nm ~ ±10000Nm(±128Lbf-ft ~ ±8000Lbf-ft)
  静态应用
  高硬度
  柱环式机械连接
  可选放大输出

  CS1210系列扭矩传感器更多技术参数及规格书下载请浏览:http://www.sensorway.cn/sensors/559.html

  北京赛斯维测控技术有限公司产品咨询热线:010-84775646,84775648。
