Applications: Irrigation, RV and Marine Holding Tank Level, Water Storage and Recycling Systems, Small Tank Fluid Level, Chillers and Evaporative Coolers
Industries: Environmental Monitoring

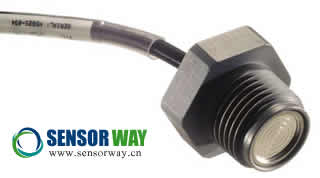

　　Description: The LM Series incorporates stainless steel and plastic isolation suitable for level sensing in water other liquids. The LM series uses a patent pending low cost stainless steel sensor in a PVC plastic fitting. The modular design is adaptable to an infinite number of plastic port variations. With high performance in a small form factor, the LM Series enables the miniaturization of high accuracy pressure systems. The standard output is .5V to 4.5V with a 5V supply.

　　Features:
　　Threaded Process Fitting
　　-20ºC to +85ºC Operating Temperature Range
　　±1% Pressure Non Linearity
　　 ±3.0% Total Error Band
　　 Solid State Reliability

　　典型应用: 灌溉系统，房车和船舶水位保持，蓄水和水循环系统，小型罐体液位，冷却器和蒸气冷凝设备

　　行业: 环境监测

　　产品描述: LM系列采用专利的不锈钢外壳传感器和塑料过程连接头相结合，用于测量水和其它液体的液位。产品设计灵活，可以满足客户对过程连接头的各种要求。LM结构紧凑，精度高，工作电压为5V，标准输出为0.5V ~ 4.5V。

　　特点:
　　螺纹过程连接头
　　工作温度：-20~85℃工作温度范围
　　±1%非线性
　　±3.0%总误差
　　固态结构

　　LM系列压力传感器更多技术参数及规格书下载请浏览：
http://www.sensorway.cn/sensors/23.html

　　北京赛斯维测控技术有限公司产品咨询热线：010-84775646，84775648。
