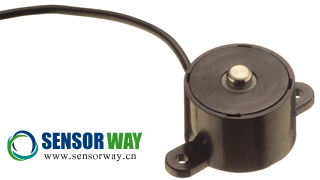

输液泵用FC22力传感器中英文产品介绍
来源:赛斯维传感器网 发表于 2014/6/16



  Applications: Medical infusion pumps, Robotics end-effectors, Variable force control, Load and compression sensing, Exercise machines, Pumps, Contact sensing, Weighing, Household appliances

  Description: The FC22 Series low cost compression load cells create new markets previously unrealizable due to cost and performance constraints. This series provides a new level of performance at very low cost. Measurement Specialties’ proprietary Microfused™ technology, derived from demanding aerospace applications, employs micromachined silicon piezoresistive strain gages fused with high temperature glass to a high performance stainless steel substrate. Microfused™ technology eliminates age-sensitive organic epoxies used in traditional load cell designs providing excellent long term span and zero stability. Operating at very low strains, Microfused™ technology provides gage factors greater than 100, an essentially unlimited cycle life expectancy, superior resolution, exceedingly high over-range margins without the need for stops and a ratiometric span of up to 4V. Microfused™ sensors are used in a variety of applications including bathroom scales, paint sprayers and safety-critical automotive stability control. Measurement Specialties’ model FC22 is appropriate for use in all types of OEM weighing and force measurement applications where high reliability and accuracy are critical. From appliance controls to biomechanical force feedback, FC22 is the OEM designer’s dream-come-true: cost-optimized to bring your OEM products to life whether you need thousands or millions of load cells annually. Although the standard model is ideal for a wide range of applications, the design team at our Load Cell Engineering Center can provide custom designs for your OEM applications. The FC22 is fully thermally compensated for changes in zero and span with respect to temperature and offer normalized zero and span for interchangeability. Consult Measurement Specialties for uncompensated super low cost variants of the FC22 load cell.

  Features:

   Low cost
  Compression Ranges: 10, 25, 50 and 100 lbf
  High level or millivolt outputs
  Interchangeable
  Compact easy to fixture design
  Small size
  Low noise
  Robust: high overrange capability
  High reliability
  Low deflection
  Essentially unlimited cycle life expectancy
  Low off center errors
  Fast response time
  Reverse polarity protected

  典型应用: 医疗输液泵,机器人末梢执行器,变力控制,负载/压力测量,运动器材,泵,称重,家用电器

  产品描述: FC22系列力传感器具有高性能,低成本的特点。源于航天航空业的特殊要求,MEAS利用独有的微熔技术通过高温熔解玻璃将微机械压阻应变片与高性能不锈钢基板粘合。微熔技术彻底摆脱了传统称重传感器所使用的限制产品寿命的有机环氧树脂,从而具有极好的零点和长期稳定性。在形变非常小的情况下,微熔技术利用应变因子大于100的应变片,产品不存在寿命限制,分辨率高,抗过载能力强,最大输出为4V。微熔力传感器广泛的应用于人体秤,喷涂设备,汽车稳定性控制等。MEAS的FC22适用于所有需要高可靠性和高精度的称重及力测量OEM应用。从家电控制到生物力学力反馈,FC22都是OEM客户的理想选择。尽管标准产品已经可以满足诸多应用,我们的设计团队仍乐于根据您的OEM应用定制产品。FC22经过温度补偿,互换性好。

  特点:

  低成本
  压力范围:10,25,50 和 100 lbf
  放大或毫伏输出
  互换性好
  小型封装,容易安装
  低噪声
  耐用:高过载能力
  高可靠性
  偏移小
  无寿命限制
  偏心误差小
  响应迅速
  反向极性保护

  FC22力传感器更多技术参数及规格书下载请浏览:http://www.sensorway.cn/sensors/229.html

  北京赛斯维测控技术有限公司产品咨询热线:010-84775646,84775648。
