Applications: Batch weighing, Robotics end-effectors, Variable force control, Load and compression sensing, Assembly line force measurement, Pumps, Hoist and winch loads, Weighing

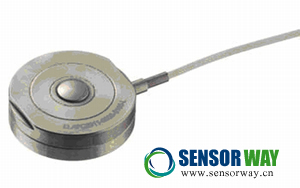

　　Description: The FC23 Series low cost compression force sensors create new markets previously unrealizable due to cost and performance constraints. This series raises the bar in price and performance. Measurement Specialties’ proprietary Microfused™ technology, derived from demanding aerospace applications, employs micromachined silicon piezoresistive strain gages fused with high temperature glass to a high performance stainless steel substrate. Microfused™ technology eliminates age-sensitive organic epoxies used in classical load cell designs providing excellent long term span and zero stability. Operating at very low strains, Microfused™ technology provides gage factors greater than 100, an essentially unlimited cycle life expectancy, superior resolution, exceedingly high over-range margins without the need for stops and a ratiometric span of up to 4 V. Microfused™ sensors are used in a variety of applications including bathroom scales, paint sprayers and safety-critical automotive brake sensors. Model FC23 is appropriate for use in all types of OEM weighing and force measurement applications where high reliability and accuracy are critical. From assembly line applications to high capacity printing presses, the FC23 is the OEM designer’s dream-come-true: cost-optimized to bring your OEM products to life whether you need thousands or millions of load cells annually. Although the standard model is ideal for a wide range of applications, our dedicated design team at our Load Cell Engineering Center is ready to provide you with custom designs for your OEM applications. The FC23 is fully thermally compensated for changes in zero and span with respect to temperature and offer normalized zero and span for interchangeability. Consult Measurement Specialties for uncompensated super low cost variants of the FC23 load cell.

　　Features:
　　

　　Compression ranges: from 50 to 2000 Lbf
　　High Level or Millivolt outputs
　　Interchangeable
　　Compact load button design
　　Industry standard packaging
　　Low cost
　　Small size
　　Low noise
　　Robust: high overrange capability
　　High reliability
　　Low deflection
　　Low off center errors
　　Fast response time
　　Essentially unlimited cycle life expectancy

　　典型应用: 批量称重，机器人末梢执行器，变力控制，负载/压力测量，流水线称重，泵，绞车和起重机，称重

　　产品描述: FC23系列力传感器具有高性能，低成本的特点。源于航天航空业的特殊要求，MEAS利用独有的微熔技术通过高温熔解玻璃将微机械压阻应变片与高性能不锈钢基板粘合。微熔技术彻底摆脱了传统称重传感器所使用的限制产品寿命的有机环氧树脂，从而具有极好的零点和长期稳定性。在形变非常小的情况下，微熔技术利用应变因子大于100的应变片，产品不存在寿命限制，分辨率高，抗过载能力强，最大输出为4V。微熔力传感器广泛的应用于人体秤，喷涂设备，汽车刹车控制等。MEAS的FC23适用于所有需要高可靠性和高精度的称重及力测量OEM应用。从流水线控制到印刷机，FC23都是OEM客户的理想选择。尽管标准产品已经可以满足诸多应用，我们的设计团队仍乐于根据您的OEM应用定制产品。FC23经过温度补偿，互换性好。

　　特点:
　　压力范围：50 ~ 2000 Lbf
　　放大或毫伏输出
　　互换性好
　　低成本
　　低噪声
　　耐用：高过载能力
　　高可靠性
　　偏移小
　　偏心误差小
　　响应迅速
　　无寿命限制

　　FC23系列力传感器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/230.html
