- ELHS力传感器中英文产品介绍
- 来源：赛斯维传感器网 发表于 2014/6/16
Applications: Assembly Forces, Applications Requiring Ultra Fast Response, Tool Forces, Thrust Measurements, Measurements Requiring Low Sensor Deflection and High Resolution, Product Validation Testing
Industries: General Industry

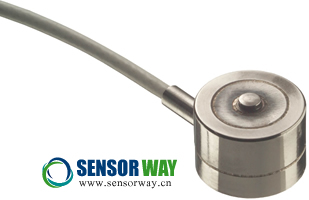

Description: The ELHS load cell is a compact package able to fit into many applications where others cannot. The low noise Wheatstone bridge consists of piezoresistive strain gages which provide 200 mV of typical full scale output. When compact design, extreme stiffness and superior resolution are required, the ELHS load cell is the sensor for your application. The ELHS is provided with either SAE or metric threads for tension and compression applications. Care should be exercised to isolate your ELHS from off-axis loads. The ELHS is a Poisson column design providing low full scale input deflection and superior resolution. Designed specifically to provide high resolution and low deflection, the ELHS will provide an essentially unlimited cycle life expectancy. The ELHS can be configured with a variety of options to fine tune the instrument to your application: select from several standard compensated temperature ranges, input voltages, lead lengths or specify entirely unique combinations of these options.
Features:
Ranges: from 200 to 10,000 lbf
Ultra compact button or threaded stud design
Millivolt output: 200 mV FSO typical
High resolution
Compression or tension/compression
Low deflection
Low mass
Low noise
High reliability
典型应用: 绳索负载，装配力，称重，工具受力，推力测量，长期测量，产品验证测试，材料测试，绞车和起重机负载
行业: 工业控制
产品描述: 典型应用: 装配力，需要超快速响应的应用，工具受力，推力测量，需要低偏移和高分辨率的应用，产品验证测试
产品描述: ELHS力传感器的小型封装使其适用于很多不同的应用。产品采用低噪声的金属箔应变片惠斯通电桥，满量程输出的典型值为200 mV。ELHS是需要小型封装，高强度和高分辨率应用的理想选择。拉压力传感器可选英制或公制螺纹。使用过程中应避免非轴向负载。ELHS采用泊松柱形设计，分辨率高，偏移量小，不受使用寿命限制。客户可根据应用配置最适合的ELHS：可选的温度补偿范围，工作电压，输出电缆长度。
特点:
量程：200 ~ 10,000 lbf
超小型螺栓式或纽扣式设计
毫伏输出：200 mV FSO 典型值
高分辨率
拉压力或只有压力
低偏移
质量轻
低噪声
高可靠性
