Applications: On-board vehicle equipment, Test bench equipment, Laboratory and research

　　Industries: Engine and Vehicle

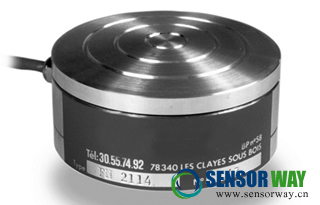

　　Description: The FN2114 load cell has been developed for pedal load testing. Its size allows the sensor to be easily installed on the pedals of any vehicle or a fatigue/endurance test bench. Since the forces to be investigated on the brake, clutch or accelerometer pedals are different, and vary from a small car to a heavy goods vehicle, Measurement Specialties offers different measurement ranges from 200 N up to 2500 N. With an internal mechanical decoupling system, accuracy is 1% F.S., regardless of the point of force application. Integrated amplifier for high level output is optionally available for all ranges. With many years of experience as a designer and manufacturer of sensors, Measurement Specialties, Inc. often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

　　Features:

　　Compression measurements
　　Accuracy 1% regardless of force application point
　　Rugged design
　　Tension output available

　　典型应用: 车载设备测试，测试台，实验室和研究

　　行业: 发动机和机动车辆

　　产品描述:

　　FN2114力传感器专为汽车踏板负载测试而设计。产品尺寸适合任何车辆踏板或疲劳/寿命测试台的安装。由于刹车、离合器和油门踏板的力各不相同，而且从小汽车到重型货车的踏板力又有很大差别，因此，MEAS提供从200N到2500N的不同量程产品。内置的机械去耦系统使得产品精度高达1%FS，不受测力点的影响。MEAS还提供放大输出型号。作为拥有多年经验的传感器设计和制造商，MEAS常常与客户合作，按要求定制适合特殊用途和测试环境的传感器。同时，我们也根据客户需要提供成套系统。配套元件（传感器，电源，放大器和数显系统）配置统一，经过校正，可供客户立即使用。

　　特点:
　　
　　触力测量
　　1%精度，不受测力点影响
　　坚固耐用
　　拉力输出型号可选

　　FN2114力传感器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/Site_Search.aspx
　　
