Applications: Process Control Equipment, Robotics and Effectors, Product Validation Testing, Laboratory and Research

　　Industries: General Industry

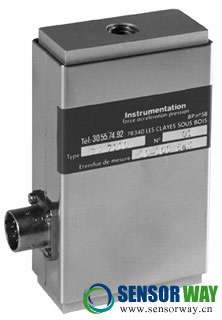

　　Description: The FN7110 features high accuracy measurement channels in two ranges in the same load cell. The standard ratio between the ranges is 1 to 10, and standard load range combinations go from 0-2 and 0-20 lb through 0-200 and 0-2000 lb. The FN7110's percentage accuracy is the same over each range in the load cell. In practice one maintains accuracy of 0.1% over the high force range even in the first10% of F.S. During measurement, once the lower range sensing element reaches its designed full scale limit, mechanical stops protect it against overloads, in tension and compression, up to 12 times the full scale limit of the higher range sensing element (which is equivalent to 12 times the full scale limit of the lower range). For high-level output, a model with an integrated amplifier is available. With many years of experience as a designer and manufacturer of sensors, Measurement-Specialties often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

　　Features:

　　Double Full Scale Range from 10/100 to 1 kN/10 kN [2/20 to 200/2 klbf]
　　Tension and Compression
　　Other Ranges on Request
　　Accuracy 0.1% F.S.
　　Integrated Mechanical Stops
　　High Level Output Model with Integrated Amplifier

　　典型应用: 过程控制设备，机器人，产品验证测试，实验室

　　行业: 工业控制

　　产品描述:

　　FN7110是一款双量程的高精度力传感器。两个量程之间的标准比率为1比10，标准量程从0-2 和 0-20 lb 到 0-200 和 0-2000 lb。FN7110两个量程的精度相同，均为 0.1% F.S。在测量过程中，一旦达到小量程传感元件的满量程极限，机械限位会保护其不受过载损坏，大量程的过载能力为1.2倍（相当于小量程的12倍）。可选放大输出。作为拥有多年经验的传感器设计和制造商，MEAS常常与客户合作，按要求定制适合特殊用途和测试环境的传感器。同时，我们也根据客户需要提供成套系统。配套元件（传感器，电源，放大器和数显系统）配置统一，经过校正，可供客户立即使用。

　　特点:

　　双量程：从10/100 到 1 kN/10 kN [2/20 到 200/2 klbf]
　　拉力和压力测量
　　可定制其他量程
　　精度：0.1% F.S.
　　内置机械限位
　　可选放大输出

　　FN7110力传感器更多技术参数及规格书下载请浏览：
