Applications: Dynamic strain cylinder regulation, Miniature press-fit device, Fatigue test benches, Robotics regulation, Small size actuators

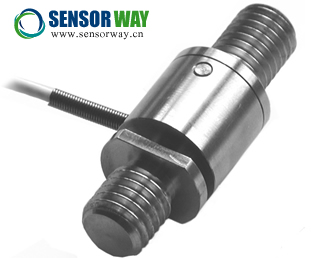

　　Description: The XFTC300 series has been specifically developed to measure tension and/or compression in static and dynamic applications. The miniature size and light-weight facilitate testing where these conditions are necessary. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The use of silicon strain gages optimizes the load cell’s performance at low ranges and frequencies. For sensors with a range of between 2 and 2kN, a high-level output model is available. With two male threads, the XFTC301 is easily installed in industrial or OEM applications. A strain relief spring strengthens the cable output. With many years of experience as a designer and manufacturer of sensors, Measurement Specialties, Inc. often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

　　Features:

　　Small design easy to mount
　　Tension and/or compression
　　Heavy duty
　　Wide temperature range in option
　　Easy to customize signal and design

　　典型应用: 气缸动态应力，小型压合设备，疲劳测试，机器人，小尺寸制动器

　　行业: 工业控制

　　产品描述:

　　XFTC300系列力传感器尺寸小，重量轻，专门为测量静态和动态拉力和/或压力而设计。该传感器采用高稳定性微机械硅应变片组成的全温度补偿惠斯通电桥。微机械硅应变片在低量程和低频下性能优异。在2~2kN量程范围内可选放大输出。两个外螺纹方便XFTC301的安装。电缆和传感器连接处带有弹簧保护。作为拥有多年经验的传感器设计和制造商，MEAS常常与客户合作，按要求定制适合特殊用途和测试环境的传感器。同时，我们也根据客户需要提供成套系统。配套元件（传感器，电源，放大器和数显系统）配置统一，经过校正，可供客户立即使用。

　　特点:

　　小尺寸设计，安装简单
　　拉力和/或压力
　　宽温度范围
　　信号和封装可定制

　　 XFTC300系列力传感器更多技术参数及规格书下载请浏览：
http://www.sensorway.cn/sensors/606.html

　　北京赛斯维测控技术有限公司产品咨询热线：010-84775646，84775648。
