Applications: Micro mechanic equipment, Robitics and effectors, Laboratory, Spring testing device

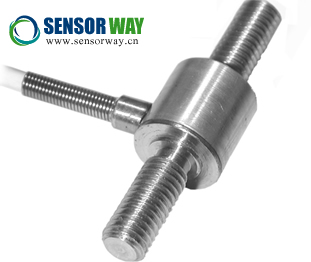

　　Description: The XFTC301 series has been specifically developed to measure tension and compression in static and dynamic applications. The miniature size facilitates testing where space is at premium. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The use of silicon strain gages optimizes the load cell’s performance at low ranges and frequencies. A strain relief spring strengthens the cable output. With two threaded male studs, the XFTC301 is easily installed in industrial or OEM applications. With many years of experience as a designer and manufacturer of sensors, Measurement Specialties, Inc. often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

　　Features:

　　Option IP rating improvement
　　Very small size
　　Aluminum and stainless steel version
　　For static and dynamic applications
　　Other threads in option

　　典型应用: 小型机械设备，机器人和电子操纵装置，实验室，弹簧测试设备

　　产品描述:

　　 XFTC301系列力传感器尺寸小，重量轻，专为安装空间受限的动/静态拉力和压力测量而设计。该传感器采用高稳定性微机械硅应变片组成的全温度范围补偿惠斯通电桥。该微机械硅应变片在低量程和低频下性能优异。传感器和电缆连接处带有保护弹簧。两个外螺纹方便XFTC301的安装。作为拥有多年经验的传感器设计和制造商，MEAS常常与客户合作，按要求定制适合特殊用途和测试环境的传感器。同时，我们也根据客户需要提供成套系统。配套元件（传感器，电源，放大器和数显系统）配置统一，经过校正，可供客户立即使用。

　　特点:

　　IP防护可选
　　小尺寸
　　铝和不锈钢可选
　　静态和动态测量
　　多种螺纹可选

　　XFTC301系列传感器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/609.html
