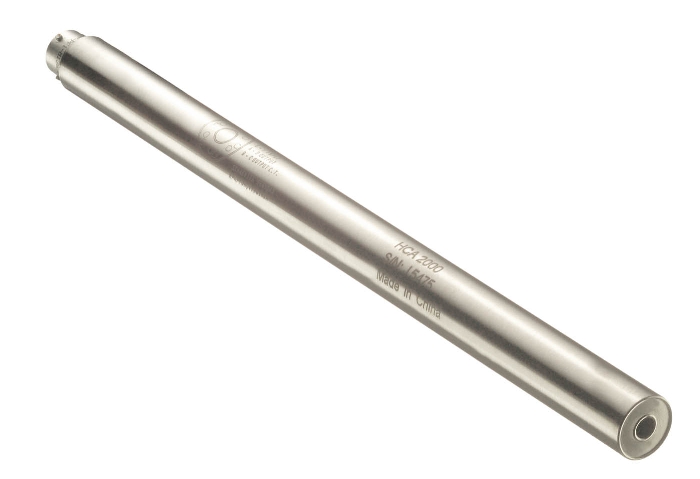

HCA系列位移传感器中英文产品介绍
来源:赛斯维传感器网 发表于 2014/6/21


  Applications: Harsh industrial environments, Submersible (with appropriate connector), Pressure vessels, Corrosive liquid and vapor areas (check materials), Mild radiation areas, Turbine valve


  Industries: General Industry


  Description: The HCA and HCA-RA Series hermetically sealed LVDTs provide premium performance in harsh industrial environments. Impervious to dirt, water, steam, and corrosive liquids/vapors compatible with its materials, the HCA/HCA-RA Series all-welded stainless steel construction withstands external pressures up to 1,000 PSI [70 bars]. Double magnetic shielding offers excellent protection from external electromagnetic fields. The HCA/HCA-RA Series can be configured with a number of standard options including but not limited to high temperature operation (+220oC) and mild radiation resistance (1012 NVT total integrated flux; 107 rads Gamma). The HCA/HCA-RA Series is compatible with the full line of Measurement Specialties LVDT signal conditioners.


  Features:


  All-welded stainless steel construction

  Glass sealed. MS type connector (MIL-C 5015)

  Shock and vibration tolerant

  Capative core eases installation (optional)

  Mild radiation resistance

  Calibration certificate supplied with each unit

  Right angle (HCA-RA) version available


  典型应用: 恶劣工业环境,配合适当接插件可水下使用,压力容器,腐蚀性液体和蒸汽区域(检查材料),轻微腐蚀区域,汽轮机阀门


  行业: 工业控制


  产品描述:

  HCA系列LVDT在惰性气体环境中用氩弧焊接(TIG焊接),不受灰尘、水、蒸汽、腐蚀性液体和烟雾影响。产品采用玻璃胶密封,MS接插件,但不允许穿过膛孔的操作。(HCA-RA则允许铁芯和连杆通过膛孔)。产品的暴露表面、膛孔衬套和接插件外壳均为不锈钢材质。传感器可以承受高达1000psi(70bar)的外部压力。双重电磁屏蔽可以抗外部电磁干扰。


  特点:


  全焊接不锈钢外壳

  玻璃胶密封,MS型连接头(MIL-C 5015)

  抗冲击和振动

  可选受限型铁芯

  防轻微辐射

  所有产品均附校准证书

  可选垂直接头型(HCA-RA)


  HCA系列传感器更多技术参数及规格书下载请浏览:http://www.sensorway.cn/sensors/28.html


  北京赛斯维测控技术有限公司产品咨询热线:010-84775646,84775648。
