Applications: Machine Tool Control, Paint Spraying System Control, Medical Equipment, Industrial Test and Measuring Equipment, Off Highway Cab Controls, Marine, Exercise Equipment, Valve Positioning, Industrial Joysticks

　　Industries: General Industry

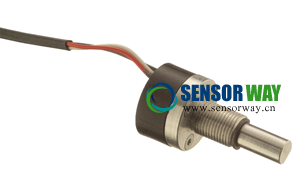

　　Description: The ED-22 Series magnetic potentiometer can be used to replace a conventional potentiometer. This product offers 270 degrees of electrical travel, integrated rotational stop system, 300 degrees of mechanical travel, utilizing a sleeve bearing and shaft fitted with an O-ring seal. This sensor is designed for rotary human machine input (HMI) applications. The non-contact magnetic sensor design utilized in the ED-22 is well suited for industrial applications where temperature extremes, high vibration and shock, and contamination are present. The ED-22 is designed using our standard modular and flexible construction methods. Measurement Specialties can customize housings, shafts, and terminations to meet your exact specifications with little or no tooling costs.

　　Features:

　　Reliable and Consistent Rotational HMI Device
　　Magnetic Sensing Technology
　　Encapsulated Electronics/Sealed unit
　　Harsh Environment Compatibility
　　0.5 to 4.5, .1 to 4.9 or 0 to 5 Vdc outputs
　　Standard industry package size
　　Consistent Rotational Torque
　　Resistant to Contamination
　　Highly Resistant to Vibration
　　Metal Shaft and Bushing
　　Wide Operational Temperature Range (–40ºC to 85ºC)
　　Custom Housings, Shafts, Terminations Available
　　Excellent Stability - No Mechanical Contacts to wear

　　典型应用: 机械控制，喷涂设备控制，医疗设备，工业测试和测量设备，工程机械驾驶室控制，船舶，健身设备，阀门位置，工业操纵杆

　　行业: 工业控制

　　产品描述:

　　ED-22系列磁性电位计可以替代传统的机械电位计。该传感器的电行程为270度，机械行程为300度，内置旋转自停系统，套筒轴承和转轴由O形圈密封。采用非接触磁性技术的ED-22编码器可用于较宽的温度范围，以及高振动和冲击的环境中，并且抗污染。ED-22系列采用模块化设计，结构灵活，可以按用户要求设计外壳、转轴和电气连接方式。

　　特点:

　　一致、可靠的旋转反馈传感器
　　磁性测量技术
　　封装电路/密封结构
　　适用于恶劣工作环境
　　0.5 ~ 4.5VDC，0.1 ~ 4.9VDC，或0 ~ 5VDC输出
　　标准工业封装
　　良好的旋转力矩
　　抗污染
　　抗冲击和振动
　　金属转轴
　　工作温度范围宽（-40℃~85℃）
　　可按用户要求定制外壳及转轴
　　稳定性好 - 非接触式，无磨损

　　ED-22系列磁性电位计更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/225.html
