Applications: Auto Safety Crash Testing, Truck Safety Crash Testing, Recreational Vehicles Safety Crash Testing , Shock Testing

　　Industries: Engine and Vehicle

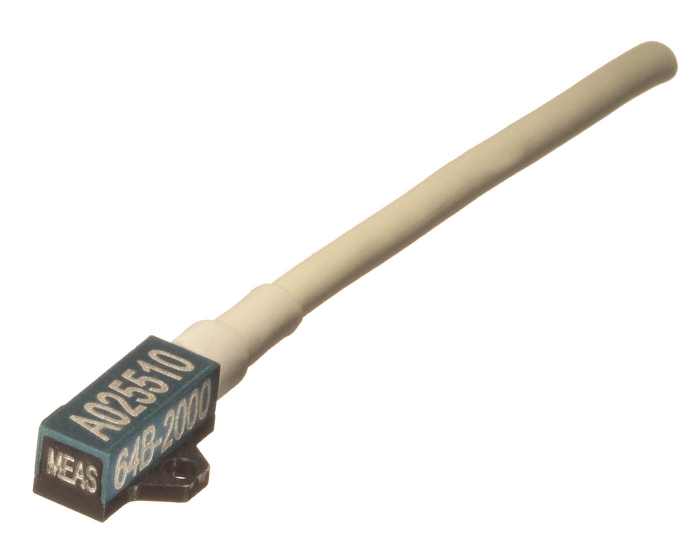

　　Description: The Model 64B accelerometer is based on an advanced piezoresistive MEMS sensing element which offers exceptional dynamic range and stability. This unit features a full bridge output configuration with a temperature range from 0 to +50o C. A slight amount of internal gas damping provides outstanding shock survivability and a flat amplitude/phase response up to 8kHz. The Model 64B is compliant with SAE J211 standards for anthropomorphic dummy instrumentation.

　　Features:

　　DC Response

　　Durable Cable

　　Small Package

　　Reliable Performance

　　2nd GEN MEMS Sensing Element

　　±50 to ±6,000 g Ranges

　　2-10 Vdc Excitation

　　0-50oC Temperature Range

　　High Impact Cable

　　1% Transverse Sensitivity Available

　　<±25 mV Zero Offset

　　典型应用: 乘用车安全碰撞测试，卡车安全碰撞测试，房车安全碰撞测试，冲击测试

　　行业: 发动机和机动车辆

　　产品描述:

　　64B型加速度传感器采用先进的压阻式MEMS技术，提供优越的动态范围和稳定性。产品采用全桥输出结构，0℃至50℃范围内温度补偿。内部气态阻尼使其具有出色的抗冲击能力，频率响应可达8KHz。64B符合SAE J211假人模型规范。

　　特点:

　　静态响应

　　耐用电缆

　　小型封装

　　性能可靠

　　第二代MEMS传感元件

　　量程：±50g ~ ±6000g

　　2 ~ 10Vdc激励电压

　　0 ~ 50℃温度补偿范围

　　高强度电缆

　　可选1％横向灵敏度

　　零点漂移<±25mV
