Applications: Industrial pump discharge, Corrosive fluid storage, Onboard equipment monitoring, Hydraulic regulation process, Laboratory and research

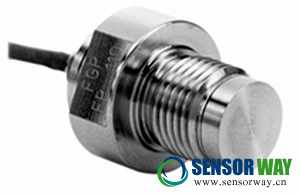

　　Description: The FP110 is designed to measure static and dynamic pressure with the output characteristics substantially kept up to about 20% of the resonant frequency. The all stainless steel construction and flush diaphragm allow the sensor to be used under a wide variety of conditions and in temperatures up to 120 °C. Fitted with metallic strain gauges in a Wheatstone bridge circuit, the FP110 provides excellent temperature stability. It is available in standard ranges from 0 to 150 psi up to 0 to 7500 psi. An on-board A1 or A2 amplifier for high level output is optionally available. Consult Measurement-Specialties’ Engineering Department if the standard options do not meet your needs or should your application require a more comprehensive measurement system.

　　Features:

　　M16 Thread
　　Wide Temperature Ranges
　　Flush Diaphragm
　　High Level Tension Output Avialable
　　Accepts Wide Range of Fluids

　　典型应用: 工业泵，腐蚀液体储藏罐，罐车监控，液压控制，实验室和研究

　　产品描述: FP110压力传感器专门用于静态及动态压力测量，且可以保证在20%谐振频率范围内具有良好的动态输出特性。该传感器采用不锈钢齐平膜结构，工作温度最高可达120℃。金属应变片组成的惠斯通电桥使得FP110可以提供非常好的温度稳定性。压力测量范围从0~150到7500psi。可选A1或A2级放大输出。同时，我们还可根据客户需求量身定制。

　　特点:

　　M16 螺纹
　　工作温度宽
　　齐平膜式
　　可选放大输出
　　可测量多种液体
