Applications: Mobile water depth measurement systems, Diving computers and diving watches

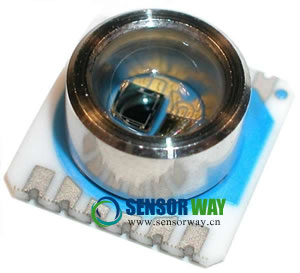

　　Description: The MS5535-30C is a high-pressure version of MS5535C pressure sensor module. It contains a precision piezoresistive pressure sensor and an ADC-Interface IC. It uses an antimagnetic polished stainless ring for sealing O-ring. It provides a 16 Bit data word from a pressure and temperature dependent voltage. Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor. MS5535- 30C is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a microcontroller.

　　Features:

　　•Resolution 3.0 mBar
　　•Supply voltage 2.2V to 3.6V
　　•Low supply current < 5uA
　　•Standy current < 0.1µA
　　•-40°C to +125°C operation temperature
　　•16 Bit ADC resolution pressure measurement and control systems

　　典型应用: 手持水深测量系统，潜水设备和潜水表

　　产品描述:

　　 MS5535-30C是高压版本的MS5535C，由高精度的硅压阻传感元件和模数转换IC组成。防磁抛光金属环与O型圈配合用于密封。传感器提供16位的压力和温度数字输出，同时还提供6个可读系数用于高精度的软件校正。MS5535-30C的主要特点是低电压、低功耗，以及自动待机（ON/OFF）功能，通过3线接口和外部微控器通讯。

　　特点:

　　分辨率：3.0 mBar
　　供电电压：2.2V ~ 3.6V
　　低功耗：< 5uA
　　待机功耗：< 0.1µA
　　工作温度：-40°C ~ +125°C
　　16位ADC分辨率
